Steel Belt for Food Industry- Belt Application:Fruit and Vegetable Drier
- Steel Belt:AT1200 / AT1000 / DT980 / MT1050
- Steel Type:Stainless Steel
- Tensile Strength:980~1200 Mpa
- Hardness:306~380 HV5
- Features:Perforated Steel Belts
STEEL BELT FOR FRUIT AND VEGETABLE DRIER | FOOD INDUSTRY
Mingke Stainless Steel Belts are widely applied to drying equipment in the food industry, such as Fruit and Vegetable Drier for dehydration of fruits and vegetables.
Applicable Steel Belts:
● AT1200, austenitic stainless steel belt.
● AT1000, austenitic stainless steel belt.
● DT980, dual phase super corrosion-resistant stainless steel belt.
● MT1050, low carbon precipitation-hardening martensitic stainless steel belt.
Supply Scope of the Belts:
|
Model |
Length | Width | Thickness |
| ● AT1200 | ≤150 m/pc | 600~2000 mm | 0.6 / 0.8 / 1.0 / 1.2 mm |
| ● AT1000 | 600~1550 mm | 0.6 / 0.8 / 1.0 / 1.2 mm | |
| ● DT980 | 600~1550 mm | 1.0 mm | |
| ● MT1050 | 600~6000 mm | 1.0 / 1.2 mm |
Characteristics of Mingke Belts for Food Drier:
● Great tensile/yield/fatigue strengths
● Good flatness and straightness
● Outstanding wear resistance
● Good corrosion resistance
● Various perforation patterns for options

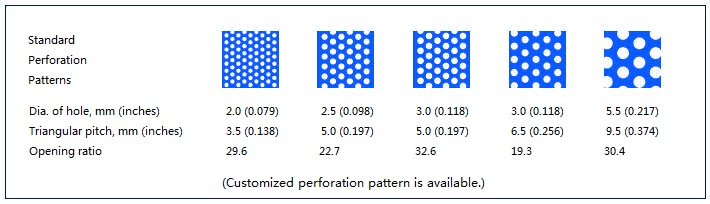

Perforation Steel Belt:
The steel belt conveyor for food drier is perforated, Mingke can supply different perforation steel belt with different patterns.
Rubber V-ropes:
For food drier conveyors, Mingke can also supply different types of rubber v-ropes for steel belt true tracking for options.
In food industry, we can supply various True Tracking Systems for options for the steel belt conveyors，such as MKCBT, MKAT, MKHST, MKPAT, and small parts like Graphite Skid Bar.
