CT1300 Hardened & Tempered Carbon Steel Belt

  • Model:
    CT1300
  • Steel Type:
    Carbon Steel
  • Tensile Strength:
    1250 Mpa
  • Fatigue Strength:
    ±430 Mpa
  • Hardness:
    380 HV5

CT1300 CARBON STEEL BELT

CT1300 is a hardened or hardened & tempered carbon steel belt. It has hard & smooth surface and a black oxide layer, which makes it suitable for any application with a low risk for corrosion. Very good thermal properties make it ideal for baking and for heating and drying of liquids, pastes and fine-grained products. It can be further processed to perforation belt.

Characteristics

● Very good static strength

● Very good fatigue strength

● Very good thermal properties

● Excellent wear resistance

● Good repairability

Applications

● Food
● Wood based panel
● Conveyor
● Others

Scope of supply

● Length – customize available

● Width – 200 ~ 3100 mm

● Thickness – 1.2 / 1.4 / 1.5 mm

Tips: Max. width of a single belt is 1500mm, customized sizes via cutting is available.



CT1300 and CT1100 belong to the series of carbon steel belt. There is a slight difference in chemical composition such as carbon content, so the static strength will also different. Compared with CT1300, the thermal properties and wear resistance of CT1100 are better. However, considering the actual application scenarios and budget of the customer, select the appropriate carbon steel belt model is a good choice. CT1300 carbon steel belt can be used in low-corrosive scenarios. For example, the single opening press used in the wood based panel industry, tunnel bakery oven in the food industry,and general conveyor equipment. For more details, you can download the Mingke Brochure.

Since we established, Mingke has empowered wood based panel industry, chemical industry, food industry, the rubber industry, and film casting etc. Apart from steel belt, Mingke can also supply steel belt equipment, such as Isobaric Double Belt Press, chemical flaker / pastillator, Conveyor, and different steel belt tracking system for different scenarios.

Product Display

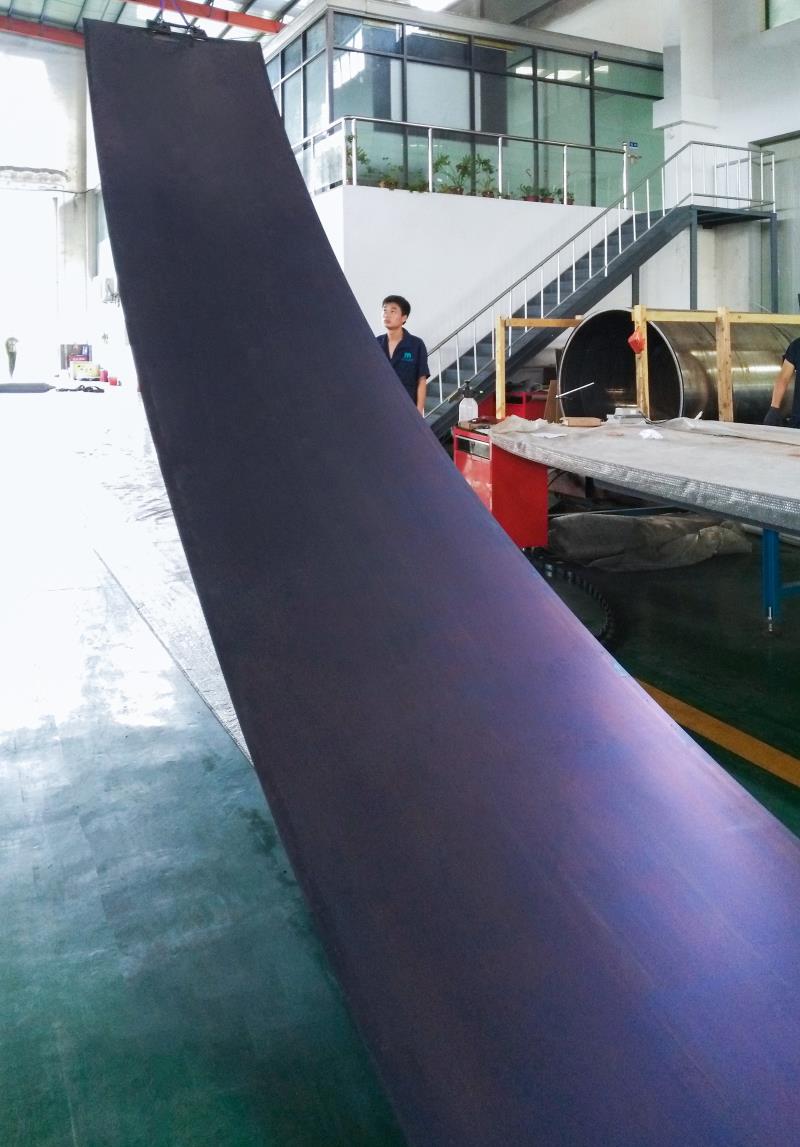

CT1300 Carbon Steel Belt (4)
