Steel Belts For Cooling Flaker | Chemical Industry

  • Belt Application:
    Chemical Cooling Flaker
  • Steel Belt:
    AT1200 / AT1000 / DT980 / MT1050
  • Steel Type:
    Stainless Steel
  • Tensile Strength:
    980~1200 Mpa
  • Hardness:
    306~480 HV5

STEEL BELTS FOR COOLING FLAKER | CHEMICAL INDUSTRY

Mingke Stainless Steel Belts perform good in corrosion resistance, so it is widely applied to chemical industry for flaking machinery to produce chemical flakes as cooling conveyor.

Applications of Belt Flaker (Single Belt Flaker | Double Belt Flaker):

Epoxy resin, sulfur, paraffin, chloroacetic acid, petroleum grease, stone carbonate, pigment, polyamide, polyamide grease, polyester, polyester resin, polyethylene, polyurethane, polyurethane resin, acid, anhydride, acrylic Resin, fatty acid, alkyl sulfide, aluminum hydroxide, aluminum sulfate, irregular acrylic acid, vinyl acetonitrile, organic fatty acids, fatty amines, stearates, food chemistry, hydrocarbon resins, industrial chemistry, magnesium chloride, magnesium nitrate, chlorine Compound, petroleum cobalt, hydrazine, potassium nitrate, potassium sulfate, powder coating, powder coating, refined product, filter residue, resin, molten salt, silica gel, sodium nitrate, sodium sulfide, sulfur, toner, chemical waste, Wax, monomer, adhesive, coating, p-dichlorobenzene, others.

Supply Scope of the Belts:

Model

Length Width Thickness
●  AT1200 ≤150 m/pc 600~2000 mm 0.6 / 0.8 / 1.0 / 1.2 mm
●  AT1000 600~1550 mm 0.6 / 0.8 / 1.0 / 1.2 mm
●  DT980 600~1550 mm 1.0 mm
●  MT1050 600~6000 mm 1.0 / 1.2 mm

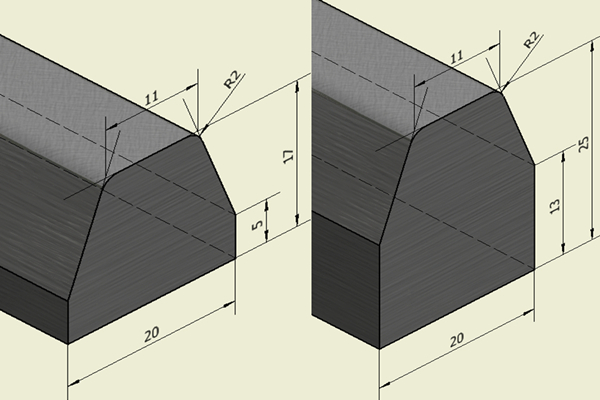

Rubber V-ropes:

Chemical Flaking Machinery (4)

For chemical cooling conveyor belts, Mingke can also supply different types of rubber v-ropes for steel belt true tracking for options.

Applicable Steel Belts:

●  AT1200, austenitic stainless steel belt.

●  AT1000, austenitic stainless steel belt.

●  DT980, dual phase super corrosion-resistant stainless steel belt.

●  MT1050, low carbon precipitation-hardening martensitic stainless steel belt.

Characteristics of Mingke Belts for Chemical Flaking Line:

●  Great tensile/yield/fatigue strengths

●  Hard & smooth surface

●  Excellent flatness and straightness

●  Good cooling efficiency

●  Outstanding wear resistance

●  Good corrosion resistance

●  Not easy to be deformed under high temperature

In chemical industry, we can supply various True Tracking Systems for options for the steel belt conveyors,such as MKCBT, MKAT, MKHST, MKPAT, and small parts like Graphite Skid Bar.
