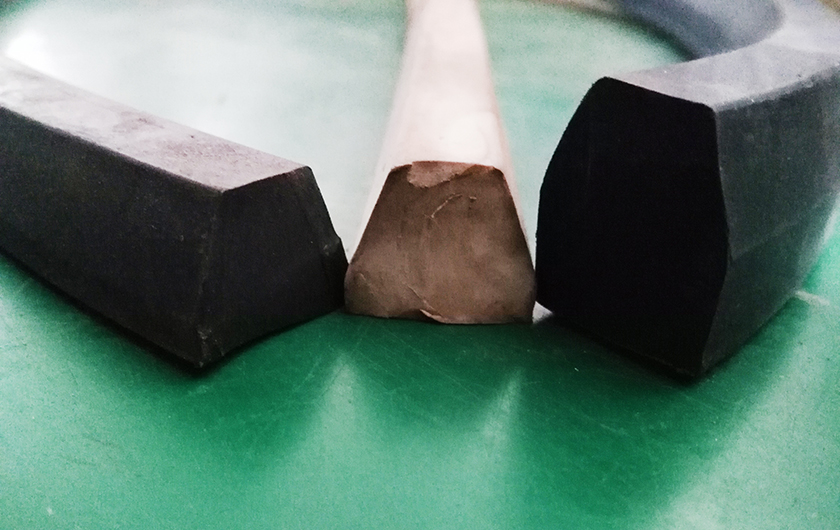

Mingke Brochure GeneralRubber V Ropes
Mingke provides different types of V-ropes, which are bonded onto the surface of the steel belt, and play an important role in steel belt tracking or retaining liquid materials/water. Mingke has special method to bond the V-ropes perfectly on the steel belt.

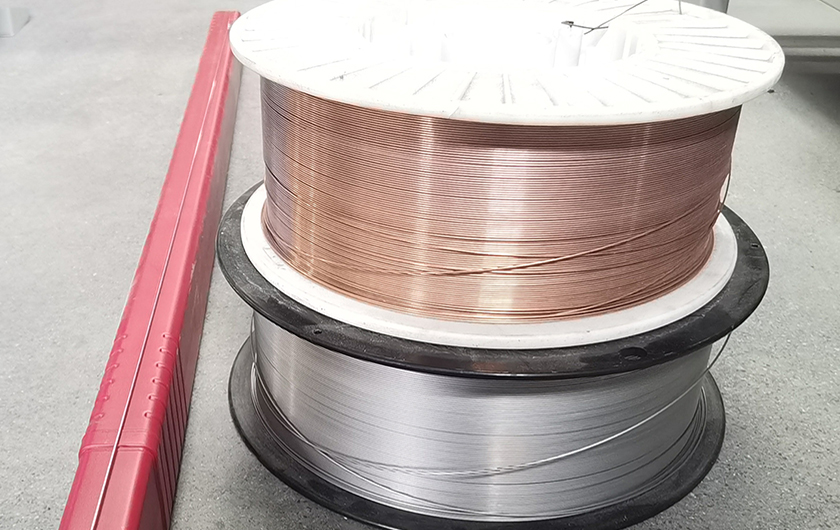

Welding Wire
Mingke provides stainless steel wire and carbon steel wire for manual and automatic welding.
Steel Belt Patches
The steel belt patches supplied by Mingke has two shapes: diamond and disc, and the specifications and dimensions are customized according to actual needs.
Plastic & Rubber Belts
 |
 |
 |
 |
|
| Model | U18/0A-W | U17/0-W | T14804 | U40K |
| Belt Applications | Forming belts | Forming belts | Prepress air belts | Prepress belts |
| Pulley diameter (minimum) | 16 | 20 | 50 | 250 |
| Surface Detail: | Matte | Matte | Nets | Matte |
| Tensile force for 1% elongation per unit of width | 18 | 14 | 15 | 70 |
| Bottomside Detail | Fabric | Fabric | Nets | Fabric |
| Hardness topside | 85 | 85 | 90 | 90 |
| Material- Surface | TPU | TPU | TPU | PUR |
| Operating temperature admissible(continuous) | -20/+80 | -20/+80 | -20/+120 | -20/+80 |
| Color | White | Blue | Blue | Black |
| Antistatics | Yes | Yes | Yes | Yes |
| Mumber of Fabrics | 1 | 2 | 1 | 3 |
| Transversal | Yes | Yes | Yes | Yes |
| Thickness | 1.8 | 1.8 | 1.8 | 3.8 |
| Attended Mode | Single layer/tooth joint | Single layer/tooth joint | Wire joint | Single layer/tooth joint |
