Top Quality Tunnel Oven Conveyor Band - Chemical Flaking Machine – Mingke Detail:

CHEMICAL FLAKING MACHINE

There are 2 types of flaking machine: single belt flaker and double belt flaker.

Mingke brand flaking machine is equipped with Mingke brand high strength steel belts, rubber r-ropes and steel belt tracking systems.

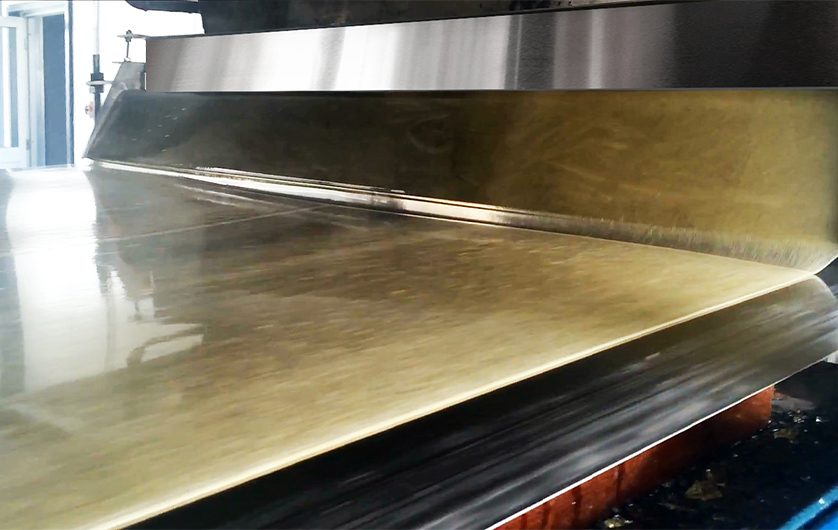

Single Belt Flaker:

Single Belt Flaker

Single Belt Flaker is mainly composed of overflow groove, stainless steel belt and crusher device. The upstream melted material drops onto the up surface of the bottom belt uniformly through overflow groove, and form a uniform thin layer. The material moves forward with the belt, and it contacts with bottom and up belts during transportation and it gets cooled down into solid by cooling water sprayed from rear surface of belts. The solid material will be sliced into irregular flakes by the crusher.

Double Belt Flaker:

Double Belt Flaker

Double Belt Flaker adopts imported stainless steel belt as conveyor, two cooling rollers are connected to the chill water (≤14℃), the stainless steel nozzles spray water to the under surface of the steel belt, guarantee enough cooling efficiency to the material. When melted material drops down to the gap of two rollers, it will be made into sheets in thickness of around 1-1.5 mm, then the melted material is cooled down and transformed to the crusher, the crushed chips size around 12×12 mm. The machine frame is made from stainless steel, which is easy to clean.    Compared with single belt flaker, double belt flaker has advantages like: the cooling efficiency is much higher, it can be used to cool down thicker material and double belts can prevent warping.

Applications of Chemical Flaker:

●  Polyester resin

●  Sulfur

●  Paraffin

●  Asphalt

●  Artificial marble

●  Chloroacetic acid

●  Others

Main Parameters:

Model Belt width (mm) Power (Kw) Capacity (Kg/h)
MKJP-800 800 4-6 200-500
MKJP-1000 1000 8-10 500-800
MKJP-1200 1200 10-12 800-1100
MKJP-1500 1500 12-15 1100-1400
MKJP-2000 2000 15-18 1400-1600




Product detail pictures:

Top Quality Tunnel Oven Conveyor Band -
 Chemical Flaking Machine – Mingke detail pictures

Top Quality Tunnel Oven Conveyor Band -
 Chemical Flaking Machine – Mingke detail pictures

Top Quality Tunnel Oven Conveyor Band -
 Chemical Flaking Machine – Mingke detail pictures

Top Quality Tunnel Oven Conveyor Band -
 Chemical Flaking Machine – Mingke detail pictures

Top Quality Tunnel Oven Conveyor Band -
 Chemical Flaking Machine – Mingke detail pictures
